Upgrade your commercial property with KEYPLUS enterprise access solutions. The R6 combines a sleek, all-in-one geometric handle with a heavy-duty three-latch mortise, delivering uncompromising physical defense and highly efficient offline administration for premium hospitality.

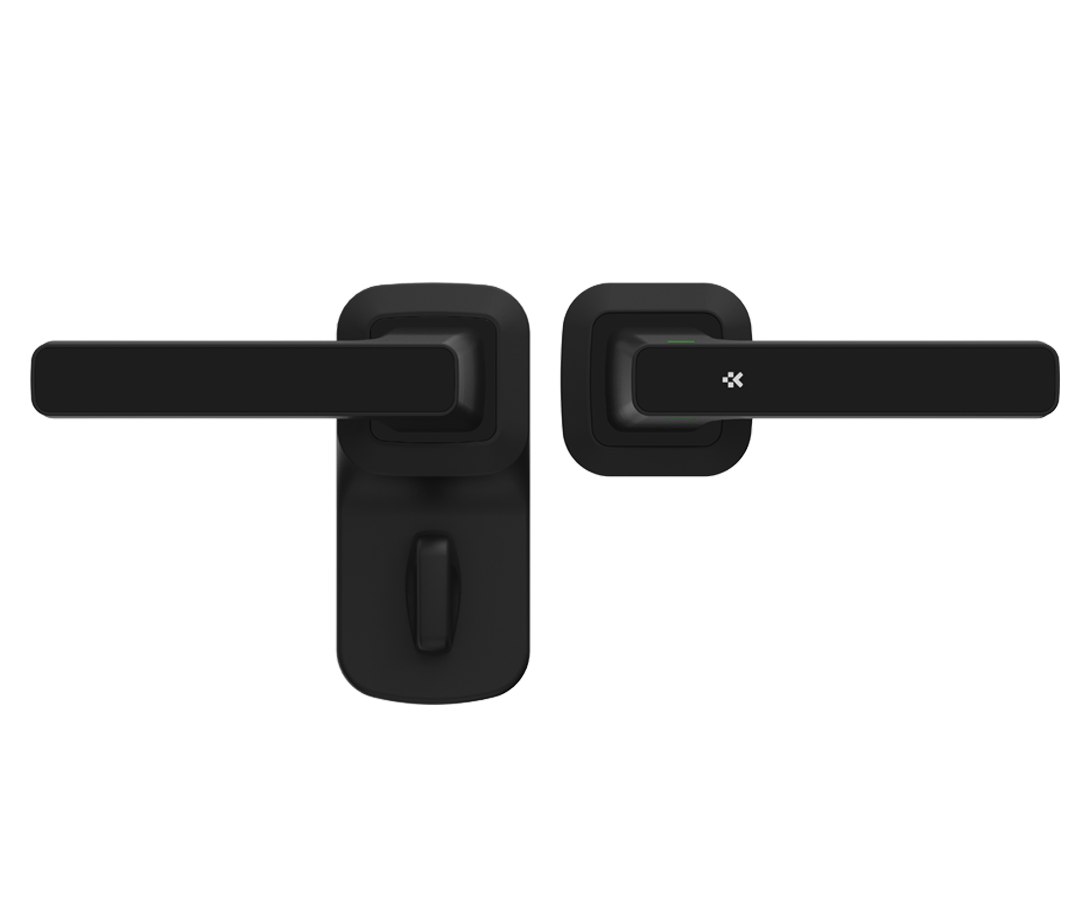

R6 Integrated Smart Lever System
The R6 is an integrated hotel card lock with the reader and mechanical-key cylinder incorporated into the handle. Its handle-led appearance offers an alternative to a separate exterior panel.
R6 Design and Hotel Management
Choose the R6 for its integrated handle format when comparing entrance hardware. The reader, indicator and key opening sit within the handle assembly, so the visual emphasis differs from a full-panel or split-reader lock.
The R6 works with hotel lock management software, a card encoder and room cards. Reception issues guest cards for the selected room and stay period; guests present their card at the door to unlock it.
Plan the guest and staff card workflow, lost-card procedure and access-record collection before rollout. Check the door preparation and test a sample with the proposed card-management setup.

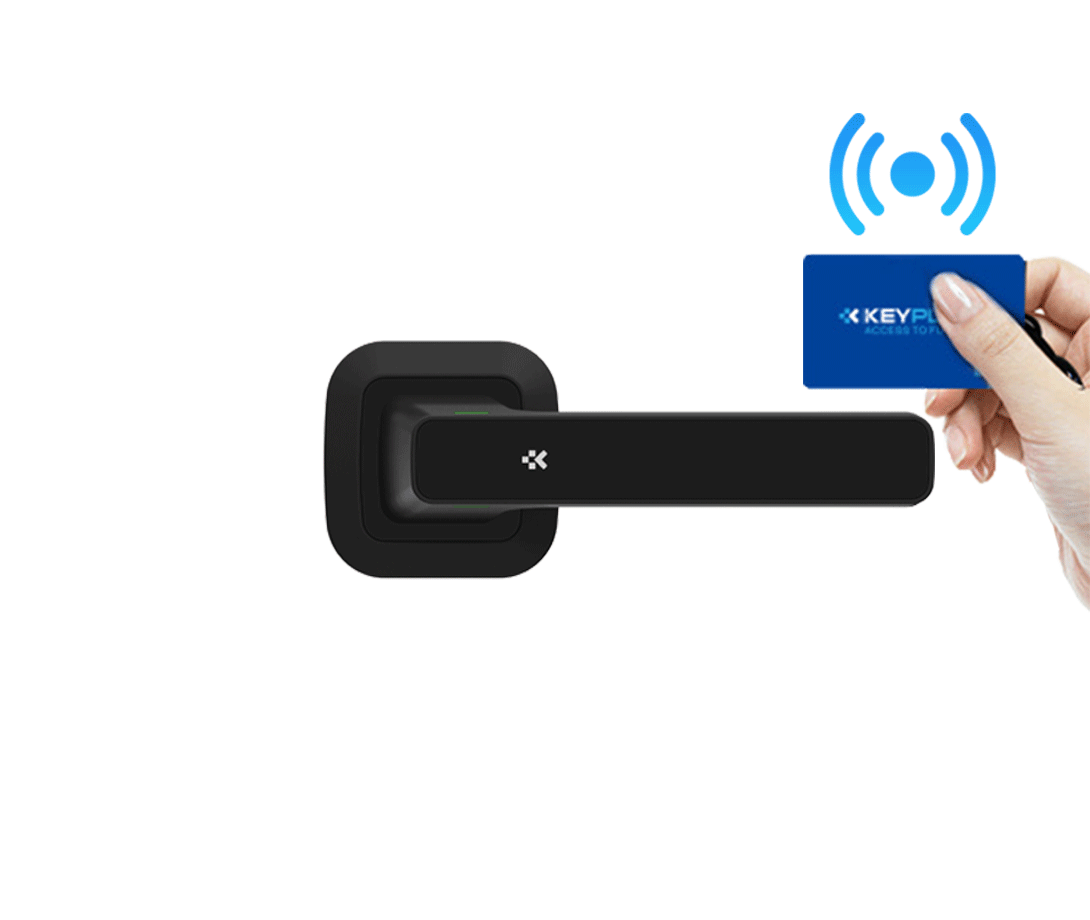

Secured Smart Card
Card-based room access gives hotels a common credential format for guests and staff. Card issuing and access permissions are set up with the project’s management configuration.
Hotel Lock Management
Hotel lock management software and a card encoder support front-desk room-card issuing and the agreed guest and staff access setup.
Tuya Configuration Options
Tuya hotel-system availability depends on the selected hardware and software version. Confirm the proposed configuration before ordering.
Mechanical Key Unlocking
Mechanical Keys for Emergency Open
Project Configuration
Confirm the lock configuration, card encoder and room-card requirements together. Check a sample with the proposed management setup before ordering in volume.
Transform daily workflows with the R6 integrated smart lock. Engineered for high-end properties, it significantly minimizes hardware clutter while maximizing both guest convenience and back-end management efficiency.
R6 Core Specifications
● All-in-One Handle: Exclusively designed for minimalist luxury environments.
● CNC Zinc Alloy: Precision-milled for exceptional durability and aesthetics.
● Integrated LED Alerts: Red/Green visual cues for immediate status recognition.
● Proactive Diagnostics: Real-time warnings for low voltage and ajar doors.
● Network-Free Security: Independent offline operation to safeguard property data.
● 3-Latch Stainless Core: Heavy-duty mechanical defense against forced entry.
● Complete Audit Control: Seamless software integration with precise opening logs and USB backup.
Door Preparation and Installation
An integrated handle still needs the correct mortise and door preparation. Compare the R6 drawing with existing holes and opening clearance, and send photos of both sides of the door for a retrofit review.
Use a sample to check card issuing, guest and staff access, mechanical-key backup and access-record retrieval before the full rollout.
R6 Project Quotation and Customization
Request a R6 project quotation with your room quantity, door drawings, preferred finish and destination country. Include card-management, branding and packaging requirements so the lock supply and installation scope can be confirmed.
Compare hotel lock designs or discuss your R6 project. For broader project needs, explore our hotel system solutions, including an optional self-developed PMS solution.
Technical Parameters
| Specifications | |
|---|---|
| Registered Cards Number | No limitation |
| Reading Time | ＜1s |
| Reading Range | ＜3cm |
| Opening Records | 1000 |
| M1 Sensor Frequency | 13. 56MHZ |
| Static Current | <30μA |
| Dynamic Current | ＜120mA |
| Specifications | |
|---|---|
| Lower Voltage Warning | ＜4. 8V (250 times at least) |
| Working Temperature | －10℃~50℃ |
| Working Humidity | 20%~80% |
| Working Voltage | 4PCS LR6 Alkaline Batteries |
| Material | Zinc Alloy |
| Color | Black / Sliver |
| Door Thickness Request | 40mm~55mm (available for others) |
Related Products
KX20 Ultra-Slim AI Smart Lock with Face Recognition & Palm Vein
KX3 PRO 3D Face Palm Vein Cat Eye Intercom Smart Lock
KX3 MAX Face Recognition Palm Vein Smart Locks
KX2 PRO Facial And Palm Vein Cat-Eye Video Intercom Screen Smart Locks
KX2 MAX Ultra-thin 3D Face Recognition Smart Locks
M1-103 Keyplus Digital Hotel Locks
M1-121 Keyplus Hotel Digital Locks
M1-130 Keyplus Smart Hotel Locks
M1-112 Keyplus Hotel Locks
HT-S20 Keyplus Hotel Locks
HT-K6 Keyplus Hotel Door Locks
HT-T2 Keyplus Hotel Locks
FAQs about R6 Digital Hotel Lock
Why choose the R6 digital hotel lock for property upgrades?
The R6 is an integrated hotel card lock with the reader and mechanical-key cylinder incorporated into the handle. Its handle-led appearance offers an alternative to a separate exterior panel. Compare the finish sample and installation drawing with your door-hardware schedule. For a refurbishment, existing cut-outs and the mortise determine the installation work.
How does the R6 handle guest key card security?
The R6 combines card-based room access with mechanical-key backup. The selected management configuration defines how guest and staff credentials are issued and controlled. Correct installation, credential management and an agreed lost-card procedure are part of the hotel’s overall access-security plan.
How are room cards issued for the R6?
Reception uses hotel lock management software and a card encoder to issue cards for the required room and stay period. The R6 reads the issued card at the door. Card setup, lost-card handling and record retrieval should be checked before rollout.
