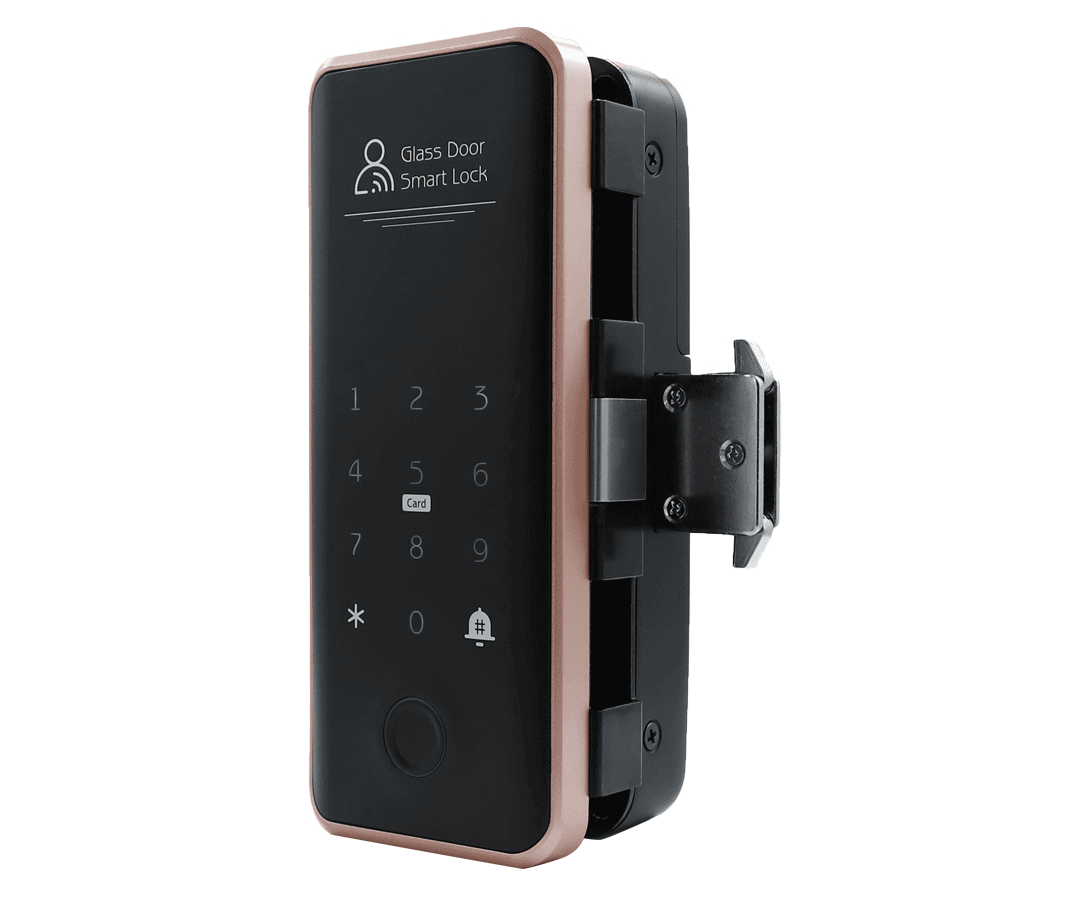

The KEYPLUS G3 is a smart lock for sliding glass-door projects, combining fingerprint, PIN, card and mechanical-key access. Its lock assembly and mounting arrangement are selected around the glass or frame construction and the door’s closing gap.
G3 for Sliding Glass Door Projects

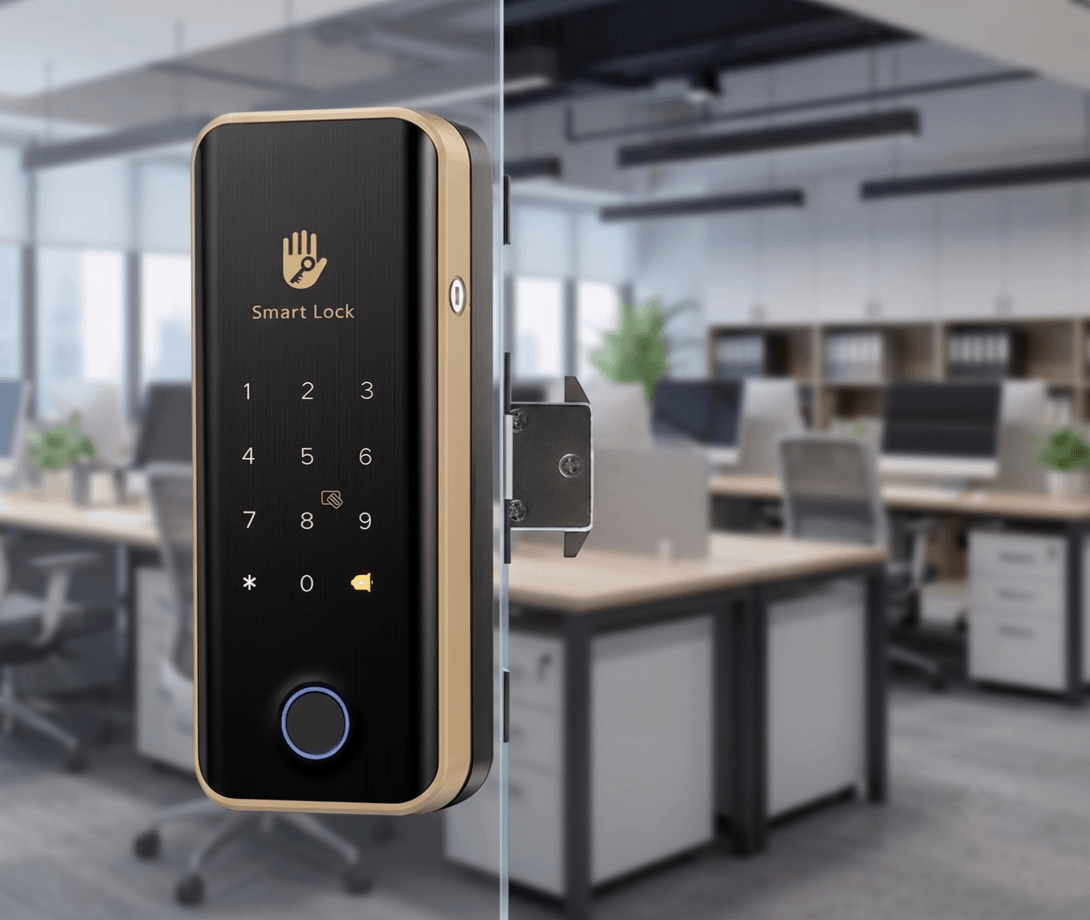

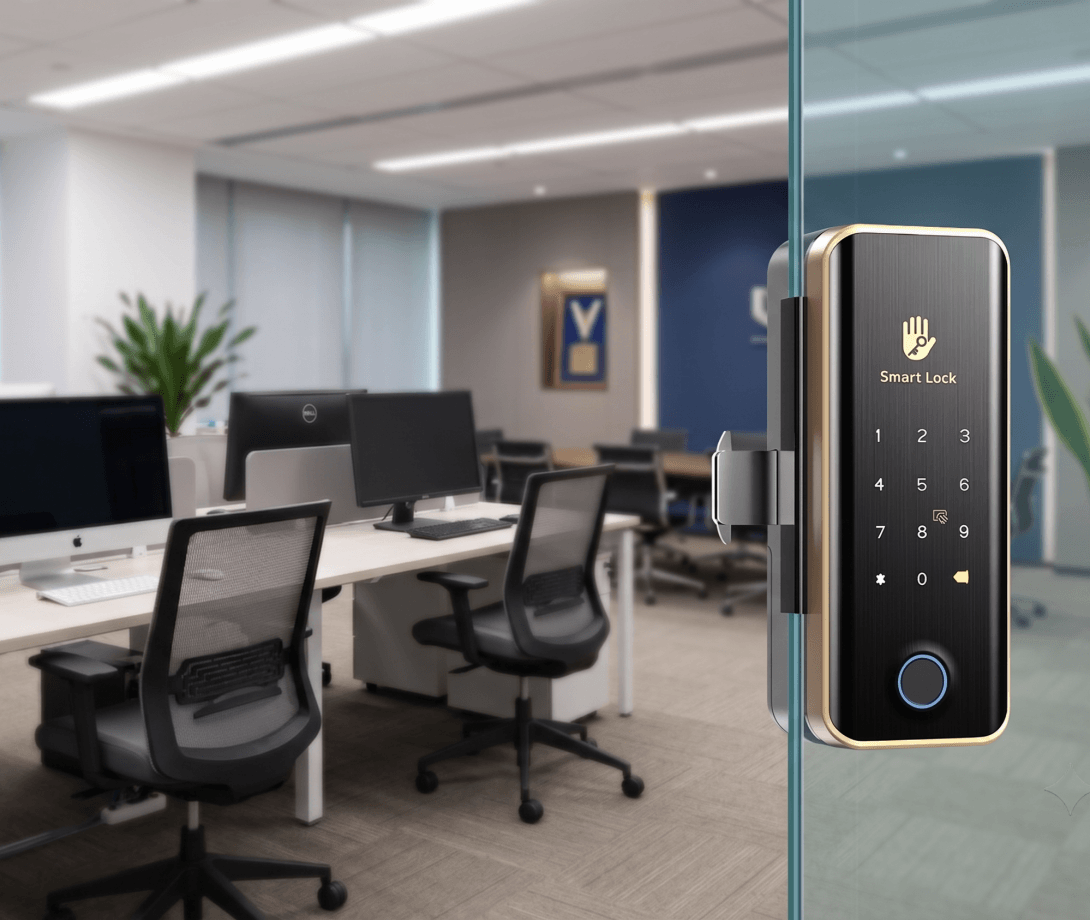

The G3 brings keyless access to sliding glass entrances in offices and other commercial spaces. Fingerprint, PIN, card and mechanical-key entry provide options for a shared entrance.
The latch and mounting arrangement are based on the glass or aluminum-frame construction and the closing gap. TTLock app access is optional.
G3 Access and Door Hardware
- Fingerprint, PIN, card and mechanical-key entry.
- TTLock app access through the selected configuration.
- Hook-latch hardware for the intended sliding-door opening.
- USB emergency power interface.
- Interior release controls.
- Mounting options for the glass or frame construction.
- Locking function integrated into the door-lock assembly.
- Latch and mounting-kit arrangement based on the door’s closing gap.

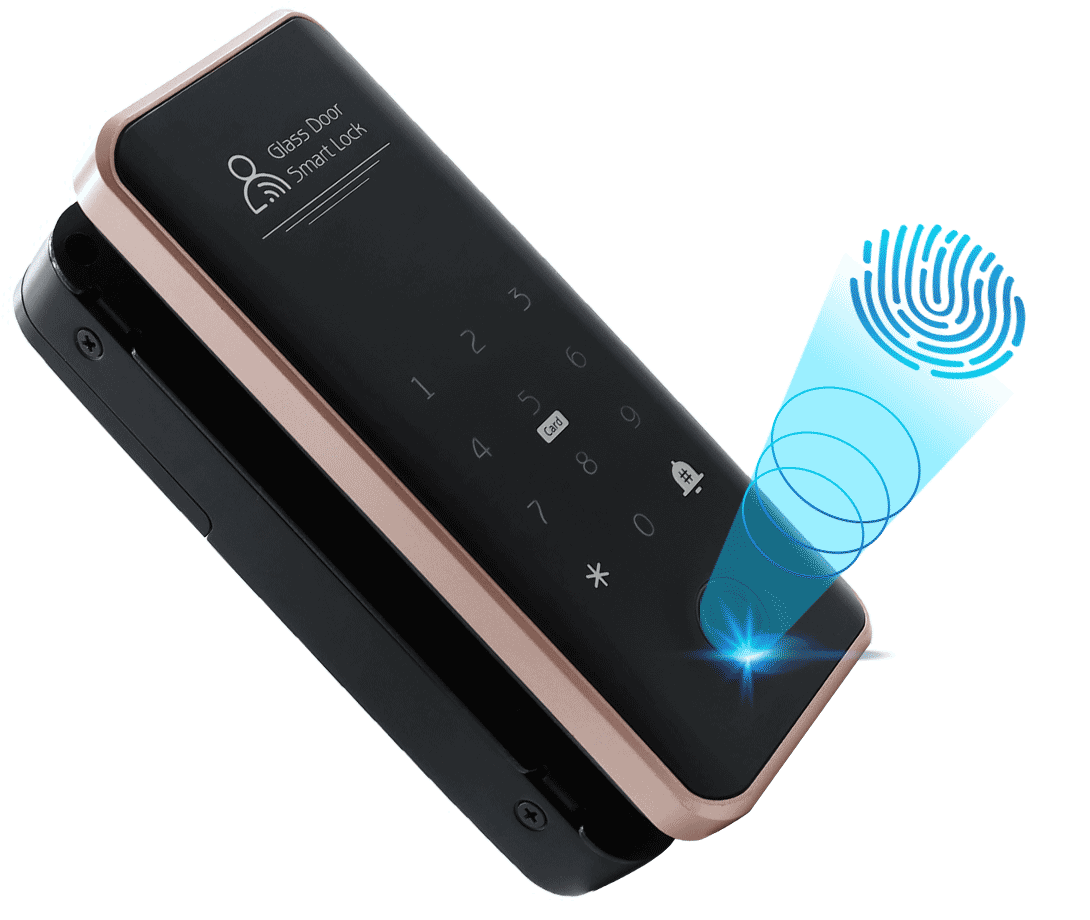

Fingerprint Unlocking
Semiconductor fingerprint reader for keyless entry.
Password Unlocking
PIN entry with an anti-peeping function.
IC Card Unlocking
MIFARE card access for authorized users.
Mechanical Key Unlocking
Mechanical-key backup entry.
Optional TTLock App Access
Optional TTLock app access.
The G3 includes interior release controls alongside the exterior fingerprint, PIN and card entry methods. This provides operation from both sides of the glass entrance.
PIN Access and Anti-Peeping Entry
The G3 supports PIN entry with an anti-peeping function, offering a keypad-based alternative to fingerprint or card access.

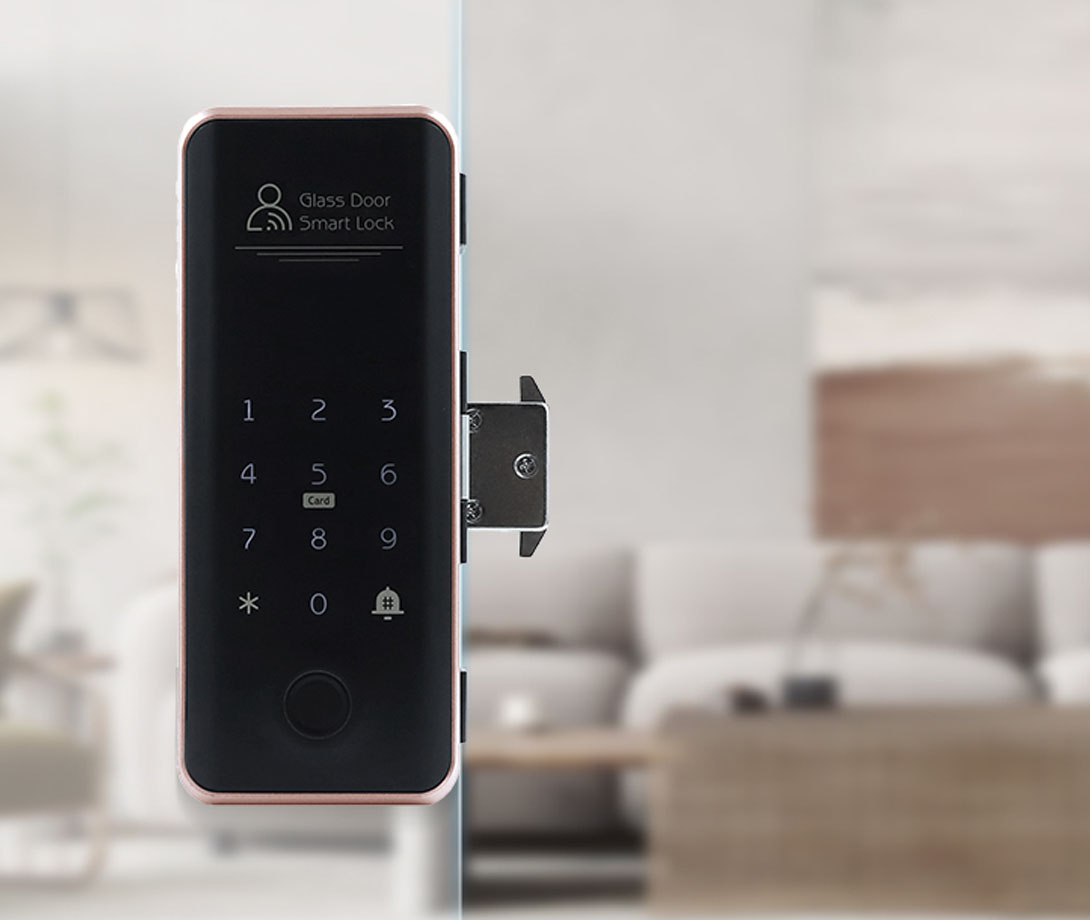

Glass Door Mounting
Glass or frame construction, glass thickness and the closing gap determine the G3 mounting arrangement. The latch and mounting kit form part of the complete sliding-door installation.
G3 Door Fit and Project Quotation
KEYPLUS supplies the G3 for office and commercial glass-door projects. Quotations cover the door quantity, destination market, mounting arrangement and required access options.
Compare smart lock designs, explore OEM/ODM cooperation, or request a G3 quotation.
Technical Parameters
| Specifications | |
|---|---|
| Material | Space Aluminium |
| Color | Black、Gold |
| Size | H 190mm*W78mm |
| Unlock Ways | Fingerprint+password+card+key+TTLOCK APP |
| Data Capacity | Fingerprint Capacity: 100PCS Password capacity:150PCS Card Capacity: 200PCS |
| Password Length | 6 digits |
| Alerting Power | 4.8V |
| Power Supply | 4*1.5V AA Battery |
| Battery Life | 10000 Operation time |
| Door Type | Wooden Door,Glass Door |
| Specifications | |
|---|---|
| Door Thickness | 8-12mm for Frameless glass door (door gap size 4-15mm); 30-120mm for Framed Glass door or Wooden door |
| Application | House/Apartment/Airbnb/Commercial office/ Campus |
| Static current | ≤65uA |
| Dynamic current | <250mA |
| Working temperature | -25℃~60℃ |
| Working humidity | 20%~90% |
| FRR | ≤0.01% |
| FAR | <0.0001% |
| Certification | CE, FCC, ISO9001 |
| Warranty | 1 year for the electronic parts and 2 years for the mechanical parts |
| Package Size (per pcs) | 26.5*18*14.5CM |
Related Products
FAQs about G3 Sliding Glass Door Smart Lock
What type of door is the G3 designed for?
The G3 is a smart lock for sliding glass-door applications in offices and commercial spaces. The glass or frame construction and closing gap define the latch and mounting arrangement.
What determines whether the G3 needs drilling?
The mounting kit and the glass or frame construction determine whether drilling is needed. Glass thickness, the frame profile and the closing gap are also part of the mounting arrangement.
What access methods does the G3 offer?
The G3 offers fingerprint, PIN code, card and mechanical-key entry. TTLock app access is optional.
